Carton Box Embossing Press Machine

Product model:Yz91

Product number:47

View videoBack

Feature:

Movable Table Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automatic

Details

  BOX-SUPPRESSED   PRESS

                                                                                             Yz91 Series

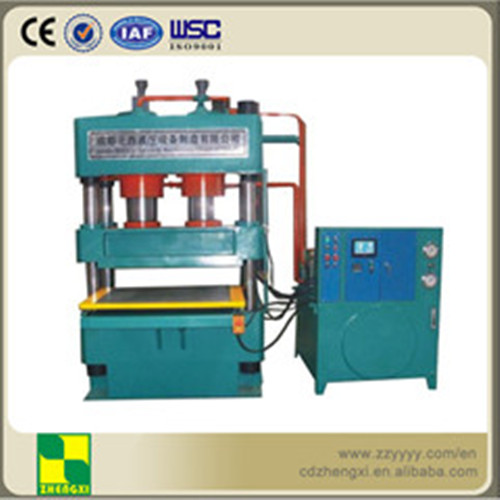

MACHINE APPEARANCE





DATA SHEET

 Name  Unit  Parameter
 Box-suppressed press    Yz91-250T
 Normal Force  KN  1250*2
 Liquid Pressure  Mpa  20
 Stroke  mm  350
 Open Height  mm  350
 Working Table Size  mm  1100*700
 Heating Style    Electric heating
 Motor Power  KW  7.5
 Outline  mm  2900*1100*2800




ACCESSORIES BRAND









OPTIONAL ACCESSARIES
