Tee Pipe Fitting Wifhin HV Compression Moulding Machine

Product model：Yz65

Product number：40

View videoBack

Feature：

slide proportional speed system, blanking buffer device, hydraulic plate proportional system, photoelectric protective device, cooling device, die protect device, displacement transducer, industrial t

Details

  TEE EXTRUSION HYDRAULIC   PRESS

                                                                                     Yz65 Series

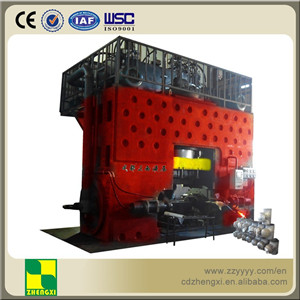

MACHINE APPEARANCE





DATA SHEET

 Model  Yz65-400T  Yz65-700T Yz65-1000T  Yz65-1200T   Yz65-1500T  Yz65-1800T Yz65-2000T
 Normal Force(KN)  4000  7000  10000  12000  15000  18000  20000
 Liquid Pressure(Mpa)  25  25  26

 27

 27  28  28
 Working Stroke(mm)  200  250  300  350  400  450  500
 Window Dimension(mm)  650  750  950  1150  1350  1500  1650
 Working Speed(mm/s)  100  100  100  100  100  100  100
 Working Table Size(mm)  700*600*100  800*700*160  900*850*150  1000*900*150  1000*900*150  1300*1200*250  1500*1400*250
 Motor Power(KW)  29.5  44.5  55  71  105  110  132
 Outline Dimension(mm)  2500*1000*3500  7000*2000*4000  3500*2400*4500  1000*2500*5000  1900*2900*6000  5000*3000*6500  5200*3200*7000





ACCESSORIES BRAND







OPTIONAL ACCESSARIES
