Free-forging Hydraulic Press for Heat Forging Press

Product model:Yz14

Product number:28

View videoBack

Feature:

Electric power equipment, shipbuilding, petrochemical, metallurgical equipment, aerospace, machine tools other industries. Mainly sui for carbon structural steel, alloy steel, carbon tool steel, alloy tool steel, bearing steel, spring steel, stainless steel, high temperature alloy steel die forging It can accomplish long pull, upting, punching, reaming, core rod length, torsion, bending, moving, chop all the free forging process, such as cutting production shaft, rod, plate, bread, ring round square of forging products, have complete mechanization auxiliary device.

Details

  FREE-FORGING    HYDRAULIC PRESS

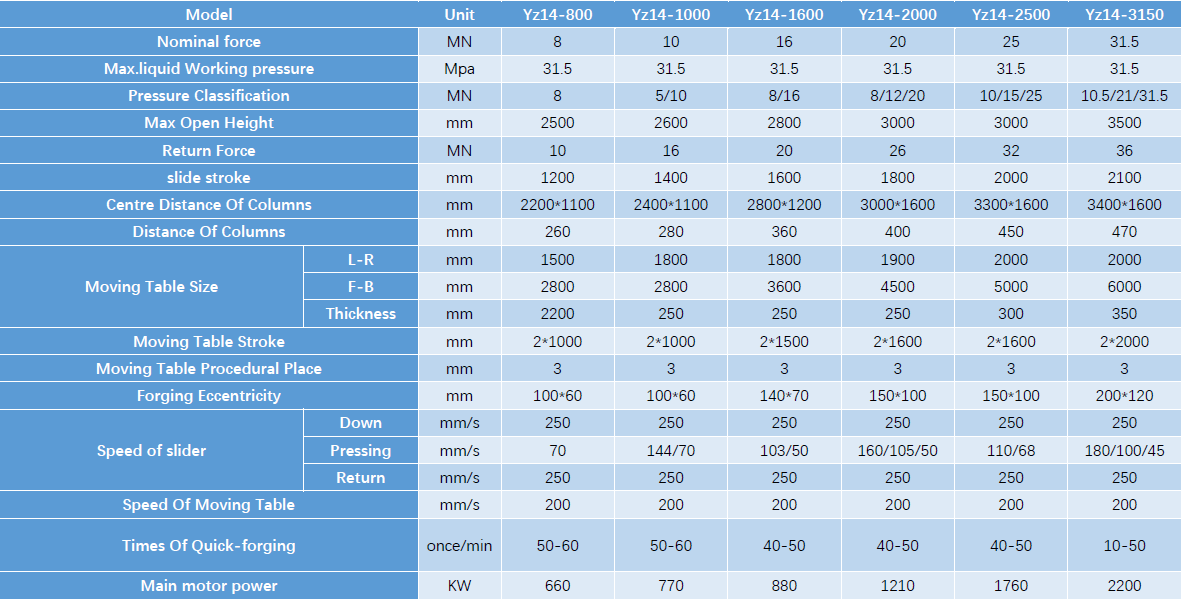

DATA SHEET OF 4-POST TYPE


MACHINE FEATURE

  1. With four-post type and frame type two kinds of structure

  2. Computer optimized design, the host of simple structure, strong practicability

  3. Hydraulic support safety loop and hydraulic safety protection circuit for each working cylinder

  4. The whole machine structure rigidity, high strength, resistance to partial load ability

  5. Complete safety device and safety control system

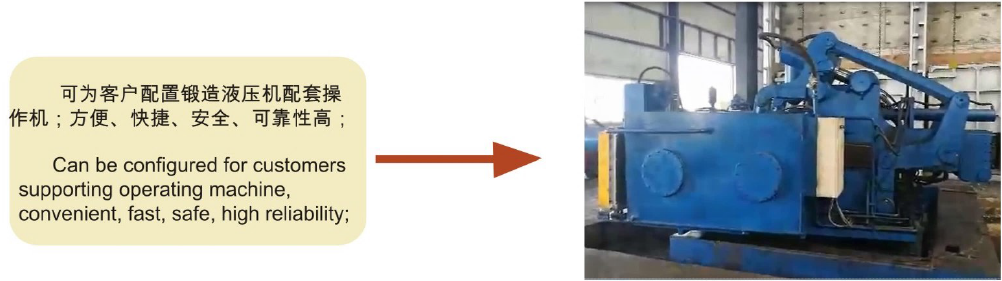

OPTIONAL ACCESSORIES

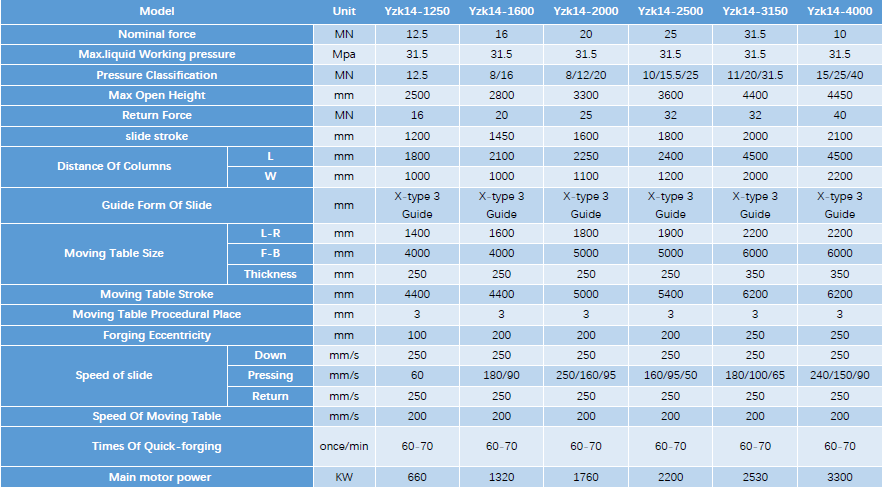

DATA SHEET OF H-FRAME HYPE FOR REFERENCE
