1000T High Quality Sheet Metal Deep Drawing Four Column Hydraulic Press Machine for sink, cookware, closure head

Product model：Yz32

Product number：26

Feature：

Stretch forming is mainly sui for plasticity material: metal or non-metal forming, stretching, plastic trimming, etc. Can suppress the typical products: auto parts, metal parts, kitchenware, ware, etc.

Details

FOUR-COLUMN HYDRAULIC PRESS

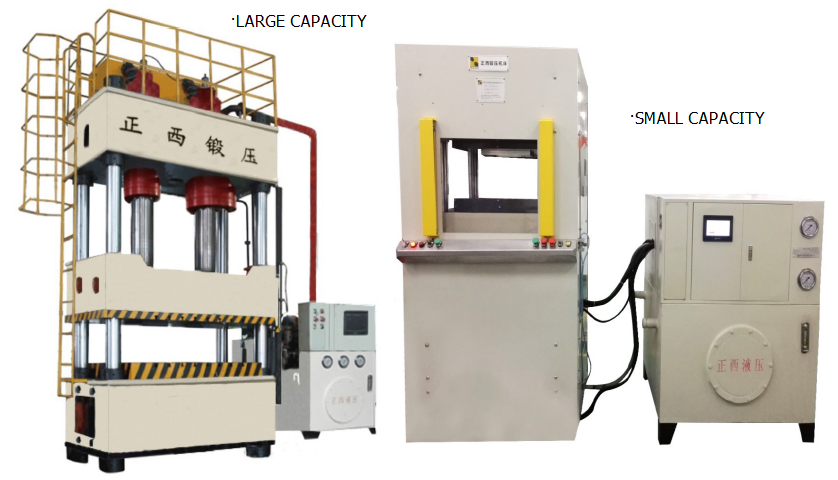

PHOTO of MACHINE

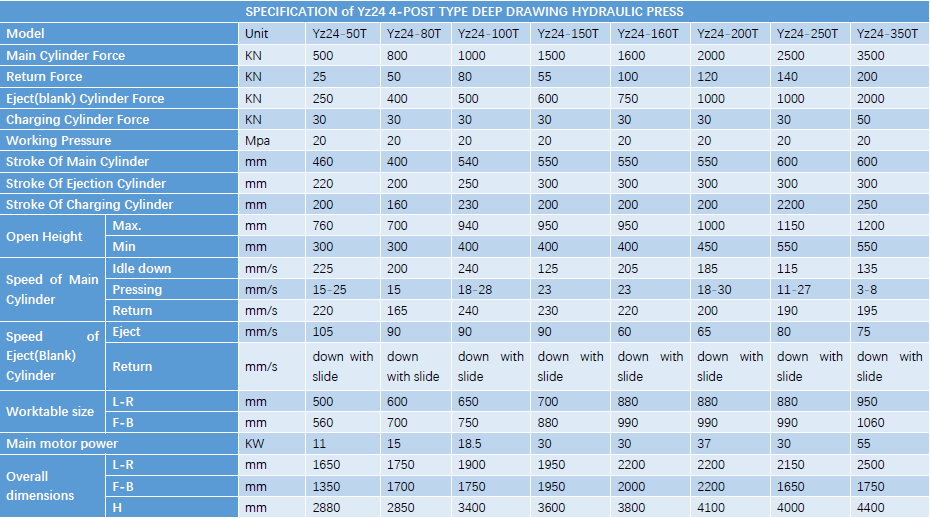

DATA SHEET

MACHINE FEATURE

Stretch forming is mainly suitable for plasticity material: metal or non-metal forming, stretching, plastic and trimming, etc.
Can suppress the typical products: auto parts, metal parts, kitchenware, tableware, etc.
Applicable fields Computer optimized structure design, three beam four-post type structure, simple, economic and practical.
Fast speed, high tensile efficiency, strong reliability.
Equipped with photoelectric protection, safe and reliable operation.
Hydraulic control USES the cartridge valve integrated system, reliable operation, convenient maintenance.
Work stress, work schedule can be within the scope of the parameters to be adjusted according to the craft.

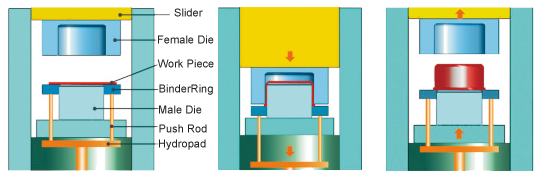

PRESSING PROCESS DIAGRAM
