30-2000 Ton Good Price Omnipotent Four Column Hydraulic Press Machine

Product model：Yz32

Product number：24

Feature：

This series hydraulic press we called omnipotent type is suit for the metal material tensile, bending, cold extrusion, cutting process, also applies to calibration, pressure equipment, powder products etc.

Details

FOUR-COLUMN HYDRAULIC PRESS

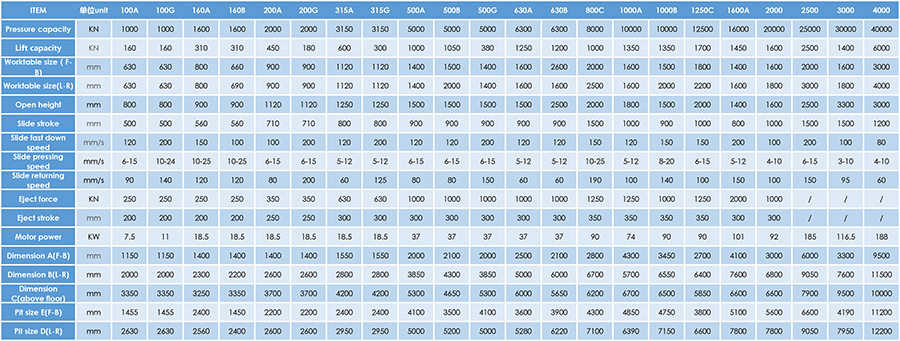

DATA SHEET

MACHINE FEATURE

Applicable fields Computer optimized structure design, three beam four-post type structure, simple, economic and practical.
Hydraulic control USES the cartridge valve integrated system, reliable operation, long service life, small hydraulic impact, reduce the edge over road and leak.
Independent of the electric control system, reliable operation, intuitive and easy maintenance.
Adopt centralized control buttons, with the adjustment, manual single cycle two kinds of operating mode.
Through the selection of operation panel, which can realize the fixed distance and constant pressure two molding process, and have confirmed when rolling, and other functions.
Working pressure and stroke, according to the needs of process can be adjusted within the prescribed scope.

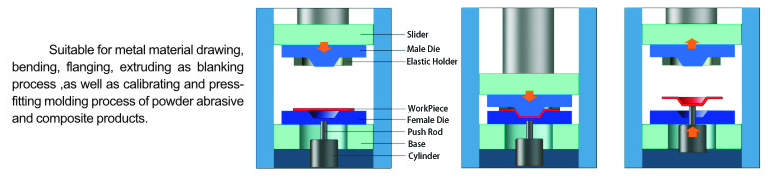

PRESSING PROCESS DIAGRAM
